Description
| Product Specifications | ||||||
| Workpiece Material |
|
|||||
| Chip breaker | PM3 | |||||
| Operation type | Semi-finishing | |||||
| Insert mounting style code | Cylindrical fixing hole | |||||

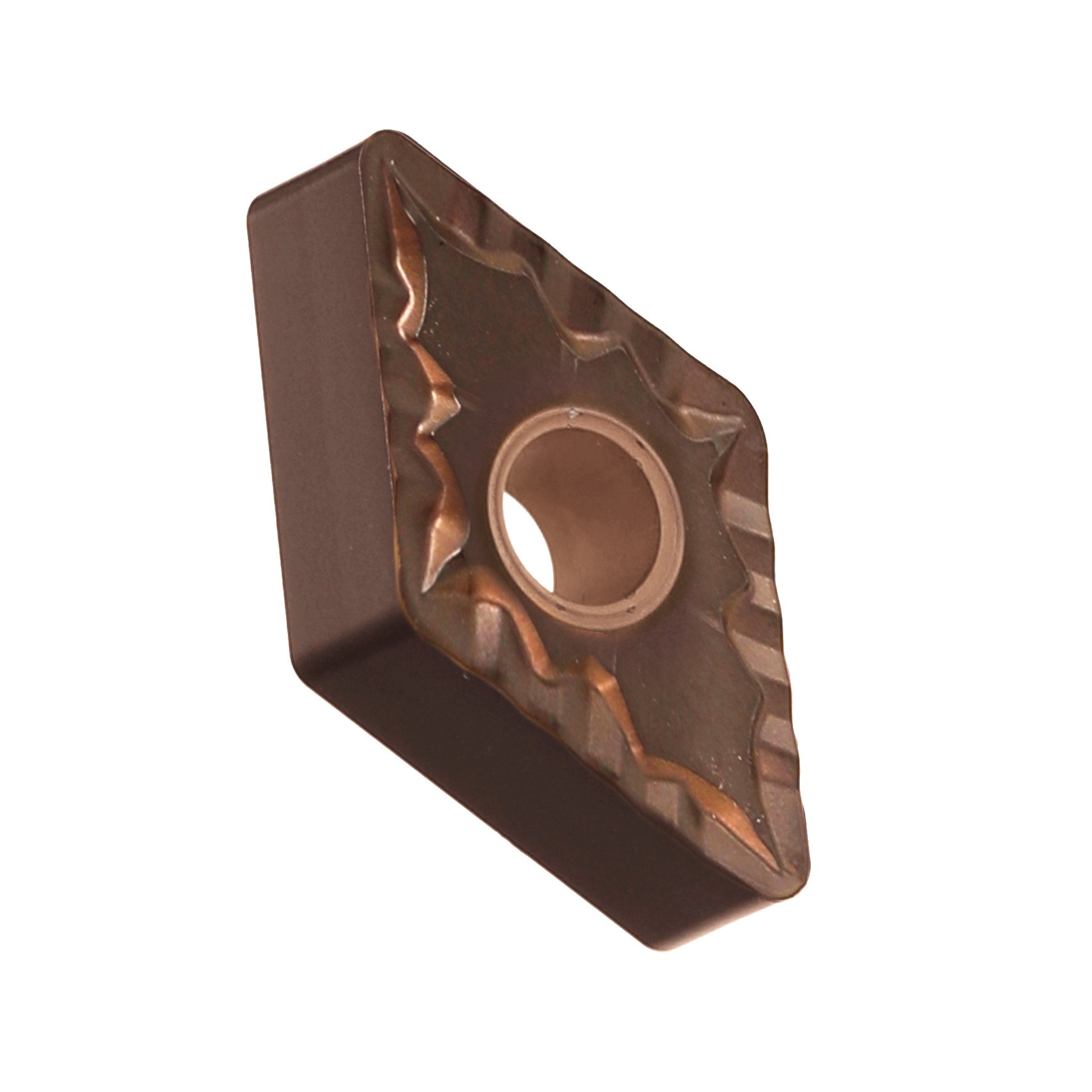

| Insert size and shape | DN1506 | |||||
| Cutting edge count | 4 | |||||
| Inscribed circle diameter (d) | 12.7 | |||||
| Cutting edge effective length (l) | 15.5 | |||||
| Corner radius (r) | 0.4 | |||||
| Substrate | HU30 | |||||
| Coating Grade | PM1050 | |||||
| Insert thickness (t) | 6.35 | |||||
| Clearance angle | 0 ° | |||||
| Weight of item | 0.014 kg |
| Cutting Data | ||
|
ap: 0.26-3.2 | |
| fn: 0.05-0.35 | ||
| Vc: 100-210 |
