Description

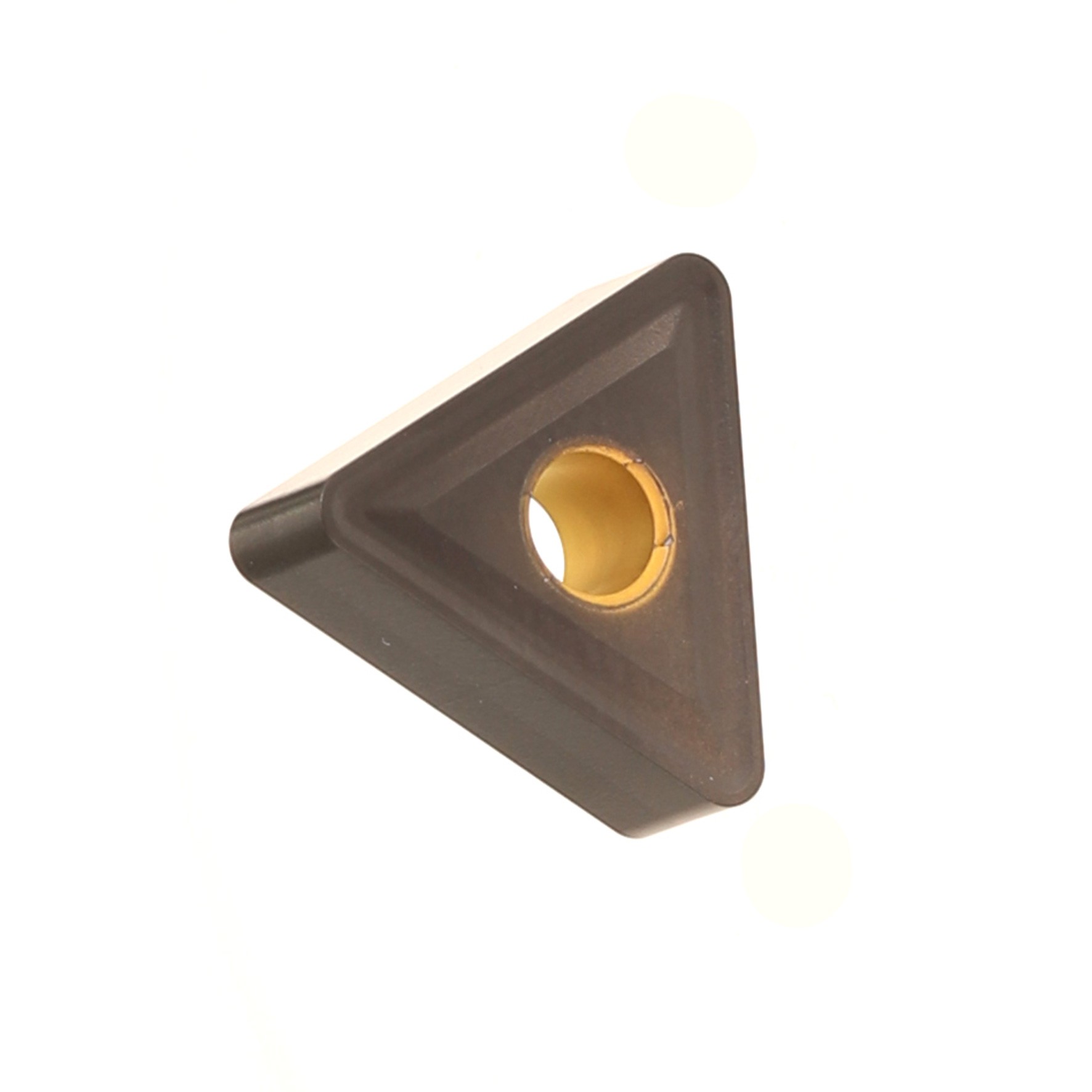

| Product Specifications | ||||||
| Workpiece Material |
|
|||||
| Chip breaker | KR4 | |||||
| Operation type | Roughing | |||||
| Insert mounting style code | Cylindrical fixing hole | |||||
| Insert size and shape | TN1604 | |||||
| Cutting edge count | 6 | |||||
| Inscribed circle diameter (d) | 9.525 | |||||
| Cutting edge effective length (l) | 16.5 | |||||
| Corner radius (r) | 1.2 | |||||
| Substrate | HK10 | |||||
| Coating Grade | CK1050 | |||||
| Insert thickness (t) | 4.76 | |||||
| Clearance angle | 0 ° | |||||
| Weight of item | 0.007 kg |
| Cutting Data | ||
|
ap: 0.9-5.2 | |
| fn: 0.1-0.35 | ||
| Vc: 155-350 |
