Description
| Product Specifications | ||||||
| Workpiece Material |
|
|||||
| Chip breaker | PM4 | |||||
| Operation type | Semi-finishing | |||||
| Insert mounting style code | Cylindrical fixing hole | |||||

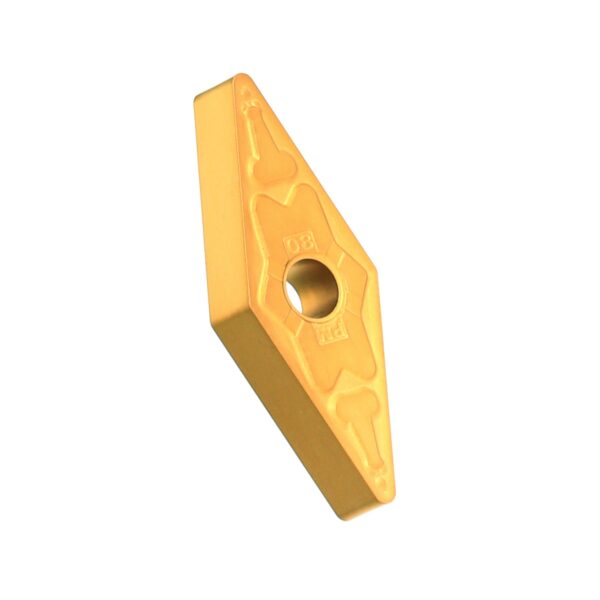

| Insert size and shape | VN1604 | |||||
| Cutting edge count | 4 | |||||
| Inscribed circle diameter (d) | 9.525 | |||||
| Cutting edge effective length (l) | 16.6 | |||||
| Corner radius (r) | 0.8 | |||||
| Substrate | HP15 | |||||
| Coating Grade | CP1550 | |||||
| Insert thickness (t) | 4.76 | |||||
| Clearance angle | 0 ° | |||||
| Weight of item | 0.009 kg |
| Cutting Data | ||
|
ap: 0.3-3.5 | |
| fn: 0.2-0.5 | ||
| Vc: 120-250 |
